Description

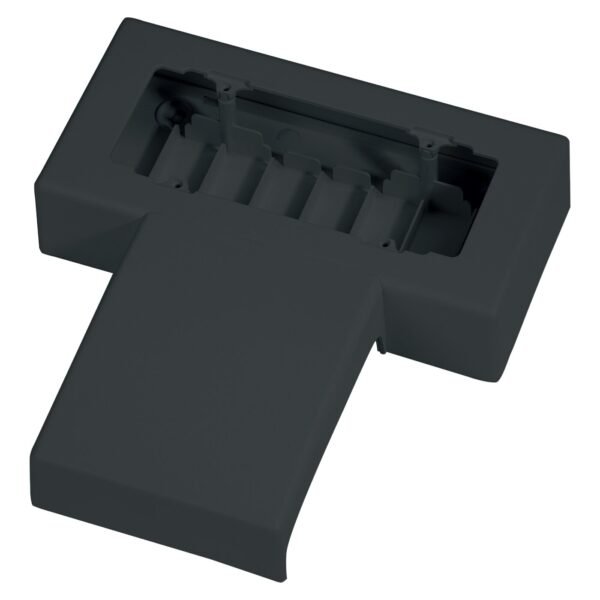

The 6/7-module 100 mm center-to-center appliance box can accommodate up to 7 Italian standard appliances or 3 multi-standard sockets. The large internal volume allows for the installation of any type of appliance. The box is composed of three assembled parts: the lower part, which snaps onto the trunking and the wall with 4 screws, and serves as an insulating base and a grid separating the various circuits. The upper part is specially shaped to accommodate the appliance mounting frames. The trunking cover, in addition to its protective function, gives the whole a harmonious and elegant shape.
Technical Characteristics
| Dimensioni | 225 x 240 x 50 mm |
|---|
Marks
Standards
EN 50085-1
EN 50085-2-1
Barcode
8033954876331
Unit
1 NR
0.33 [kg]
8059307212878
Cardboard
10 NR
0.39×0.295×0.21 [m]
3.3 [kg]
| Materiale | Plastic |
|---|---|
| Colore | Anthracite |
| Numero RAL | 7021 |
| Senza alogeni | Yes |
| Decorazione | None |
| Grado di protezione (IP) | IP40 |
| Resistenza agli urti | IK08 |
| Altezza canale del battiscopa | 130 mm |
| Profondità del canale battiscopa | 28 mm |
| Numero di unità apparecchi | 6 |
| Attrezzatura | None |
| Tipo di montaggio apparecchio per impianti | Standard |
| Direzione di montaggio | Horizontal |
| Trattamento antibatterico | No |
| Temperatura di impiego | -5-60 °C |
