Description

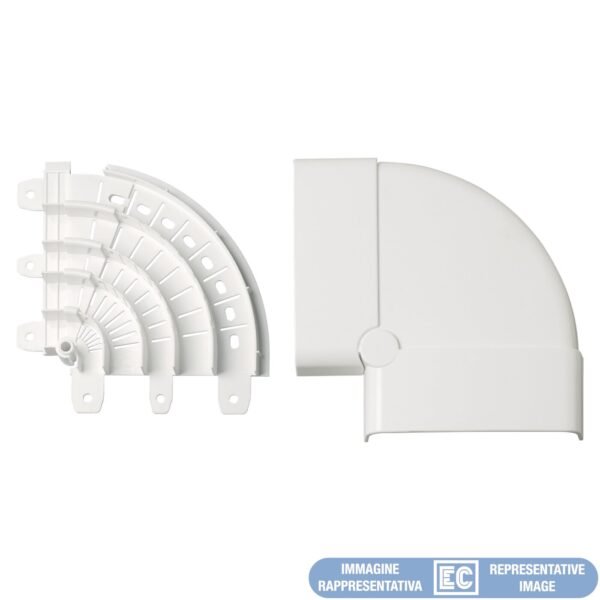

A flat angle that connects two straight sections of duct on the same plane, with an intersection angle ranging from 90° to 170°. It consists of a lower section that can be cut to the required angle, secured to the duct with screws, and a modular upper cover that overlaps the duct. The micro-hooks that secure the duct ensure a tight seal even in the event of significant impacts.
Marks
Standards
EN 50085-1
EN 50085-2-1
Barcode
8033576770185
Unit
1 NR
0.06 [kg]
8059307212601
Cardboard
10 NR
0.19×0.205×0.105 [m]
0.6 [kg]
| Tipologia EN | Base unit and cover |
|---|---|
| Materiale | Plastic |
| Colore | Anthracite |
| Numero RAL | 7021 |
| Con listello per moquette | No |
| Senza alogeni | Yes |
| Qualità del materiale | Acrylonitrile butadiene styrene (ABS) |
| Decorazione | None |
| Labbro di tenuta parte superiore | None |
| Film protettivo | No |
| Grado di protezione (IP) | IP40 |
| Resistenza agli urti | IK08 |
| Altezza canale del battiscopa | 70 mm |
| Profondità del canale battiscopa | 20 mm |
