Description

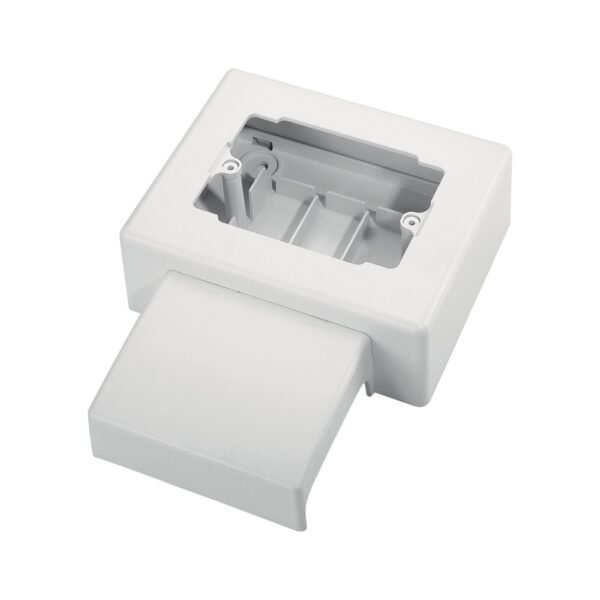

The 83.5 mm center-to-center – 3-module appliance box can be used for installing up to 3 Italian standard appliances. With a blank cover, it can be used as a junction box.
The item is composed of four assembled parts: the lower part, which snaps onto the trunking and the wall with 4 screws, serves as an insulating base and a grid separating the various circuits. The upper part is shaped to accommodate the appliance mounting frames. The trunking cover, in addition to providing protection, gives the whole a harmonious and elegant shape. The integrated end cap allows the trunking to be interrupted without the need for an additional end cap.
Características técnicas
| Dimensioni | 140 x 185 x 50 mm |
|---|
Marks
Estándares
EN 50085-1
EN 50085-2-1
Barcode
8033576770253
Unit
1 NR
0.24 [kg]
8059307212526
Cardboard
10 NR
0.39×0.295×0.15 [m]
2.4 [kg]
| Materiale | Plastic |
|---|---|
| Colore | White |
| Numero RAL | 9001 |
| Senza alogeni | Yes |
| Decorazione | None |
| Grado di protezione (IP) | IP40 |
| Resistenza agli urti | IK08 |
| Altezza canale del battiscopa | 70 etim.un.eu570448.abb |
| Profondità del canale battiscopa | 20 etim.un.eu570448.abb |
| Numero di unità apparecchi | 3 |
| Attrezzatura | None |
| Tipo di montaggio apparecchio per impianti | Standard |
| Direzione di montaggio | Horizontal |
| Trattamento antibatterico | No |
| Temperatura di impiego | -5-60 etim.un.eu570073.abb |
