Descripción

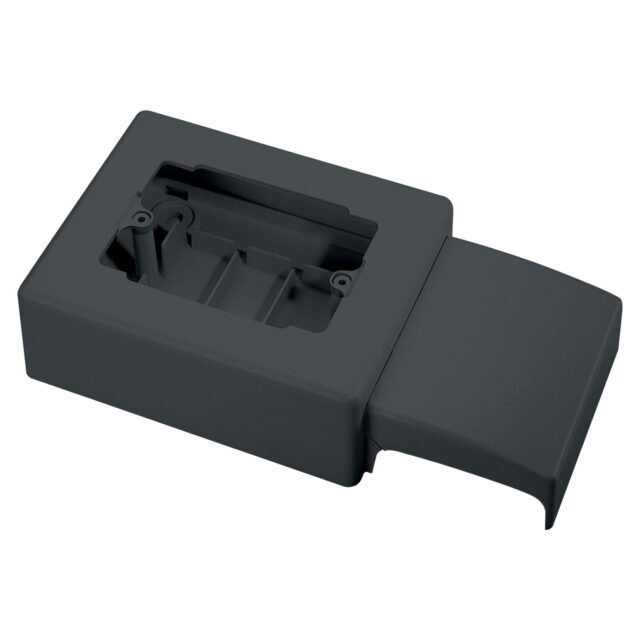

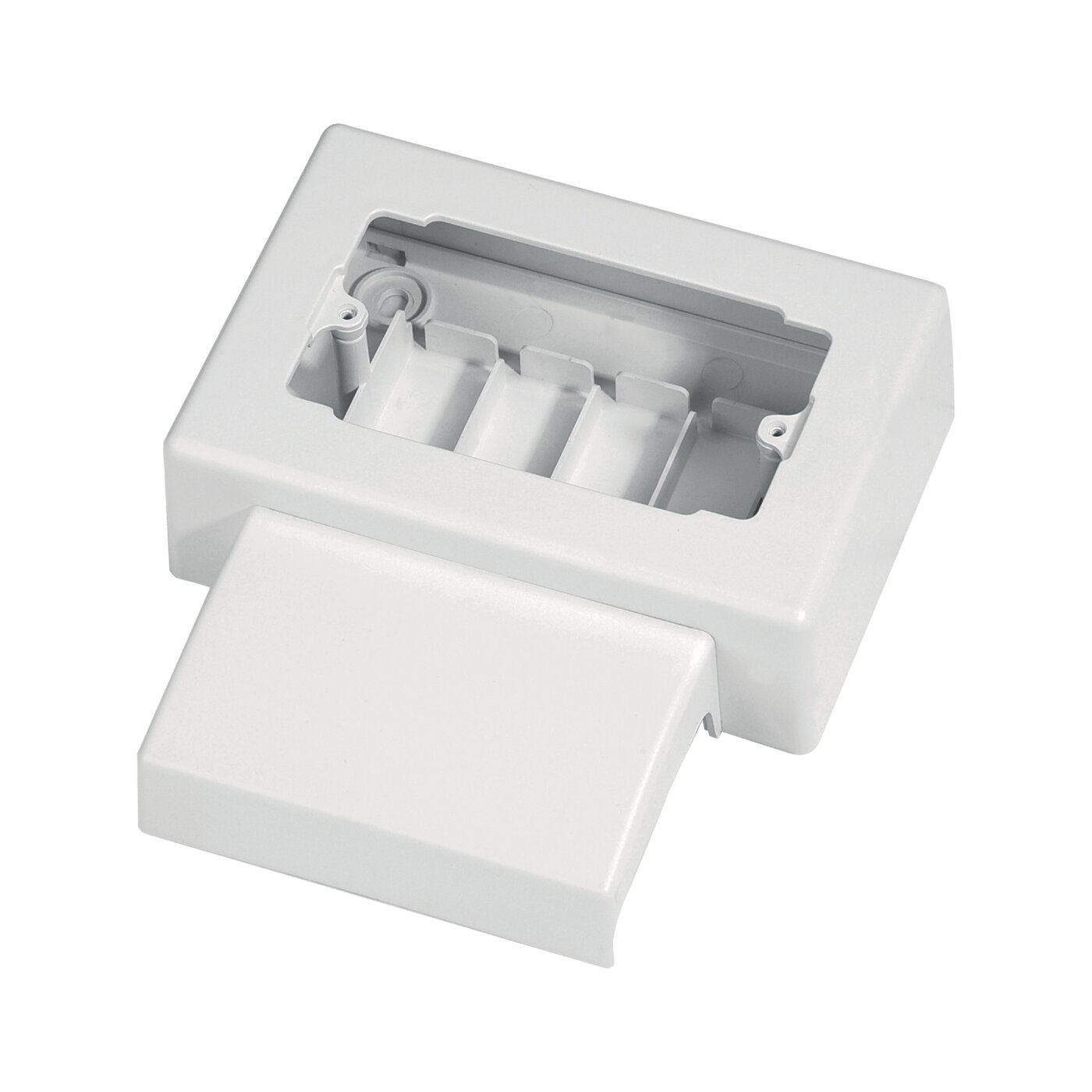

The 4-module 108 mm distance between centers appliance box can be used for the installation of up to 4 Italian standard appliances or 2 multi-standard sockets. The large internal volume allows for the installation of any appliance. The box is composed of three assembled parts: the lower part, which snaps onto the trunking and the wall with 4 screws, and serves as an insulating base and a grid separating the various circuits. The upper part is appropriately shaped to accommodate the appliance mounting frames. The trunking cover, in addition to its protective function, gives the whole a harmonious and elegant shape.
Características técnicas
| Dimensioni | 165 x 185 x 50 mm |
|---|
Marks
Estándares
EN 50085-1
EN 50085-2-1
Barcode
8033954876263
Unit
1 NR
0.23 [kg]
8059307212564
Cardboard
10 NR
0.39×0.295×0.21 [m]
2.3 [kg]
| Grado di protezione (IP) | IP40 |
|---|---|
| Direzione di montaggio | Horizontal |
| Materiale | Plastic |
| Senza alogeni | Si |
| Trattamento antibatterico | No |
| Colore | White |
| Resistenza agli urti | IK08 |
| Numero RAL | 9001 |
| Temperatura di impiego | -5-60 °C |
| Decorazione | None |
| Tipo di montaggio apparecchio per impianti | Standard |
| Altezza canale del battiscopa | 70 mm |
| Profondità del canale battiscopa | 20 mm |
| Numero di unità apparecchi | 4 |
| Attrezzatura | None |
