Descripción

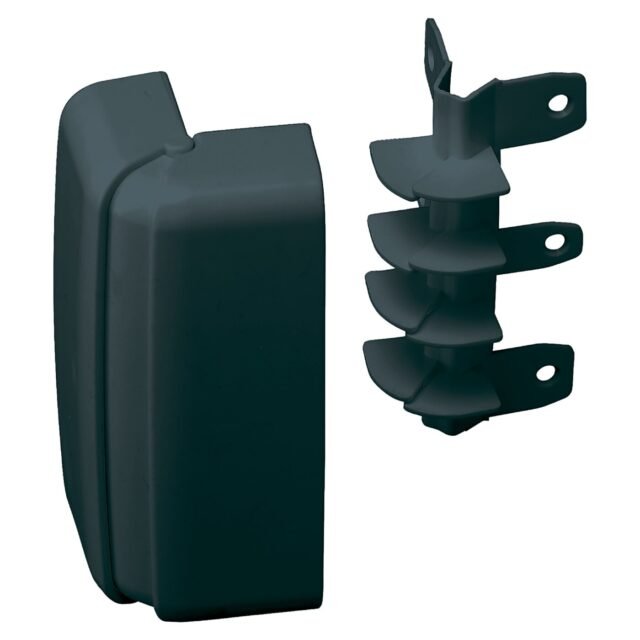

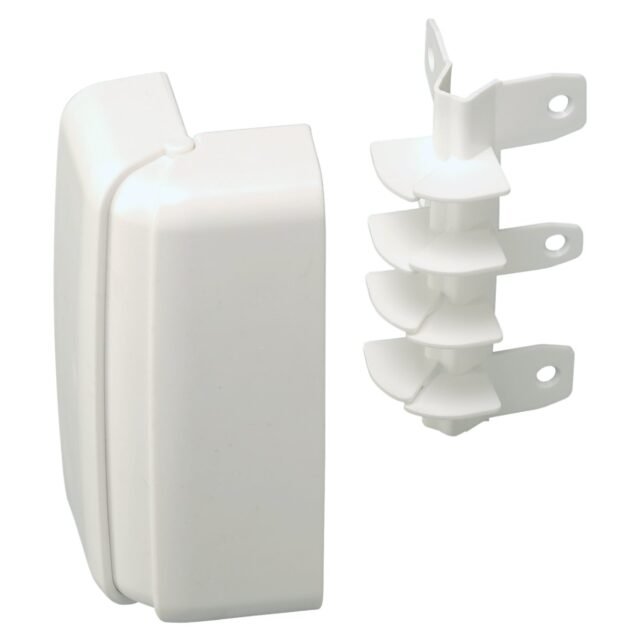

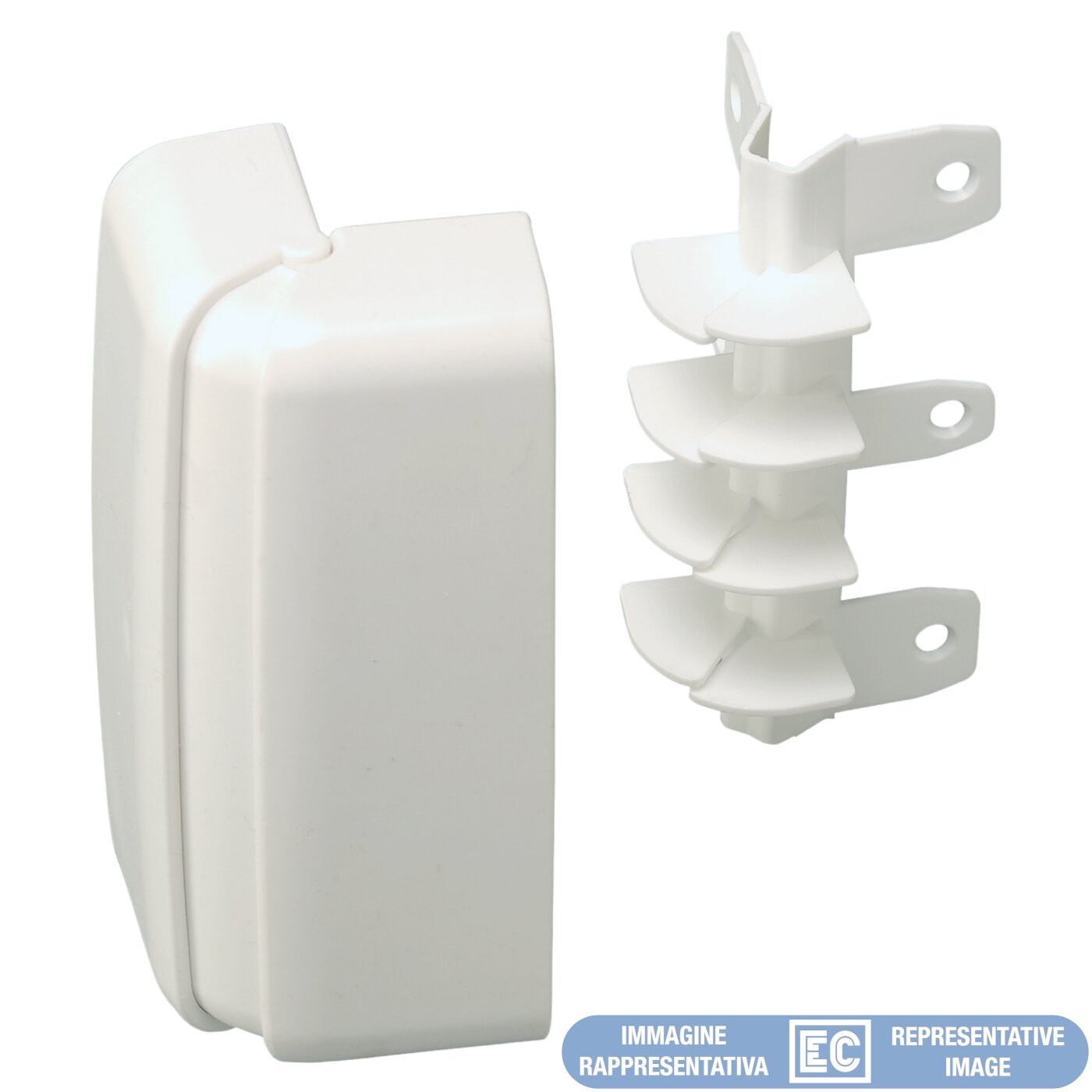

External angle composed of a flexible internal section, quickly attached with screws, which allows for insulation and continuous separation of cables within their compartments. Rigid cover, adjustable from 60° to 120°, snaps on. Designed with rounded lines and no sharp edges to minimize accidental impacts and the possibility of detachment from the trunking.
Marks
Estándares
EN 50085-1
EN 50085-2-1
Barcode
8050880880904
Pack
5 NR
0.1 [kg]
8054320280125
Cardboard
25 NR
0.165×0.175×0.105 [m]
0.5 [kg]
| Grado di protezione (IP) | IP40 |
|---|---|
| Materiale | Plastic |
| Qualità del materiale | Acrylonitrile butadiene styrene (ABS) |
| Senza alogeni | Si |
| Colore | White |
| Resistenza agli urti | IK08 |
| Altezza | 70 mm |
| Profondità | 20 mm |
| Tipología ES | Top cover |
| Numero RAL | 9001 |
| Labbro di tenuta parte superiore | None |
| Decorazione | None |
| Con listello per moquette | No |
| Angolo | 60-120 ° |
