Description

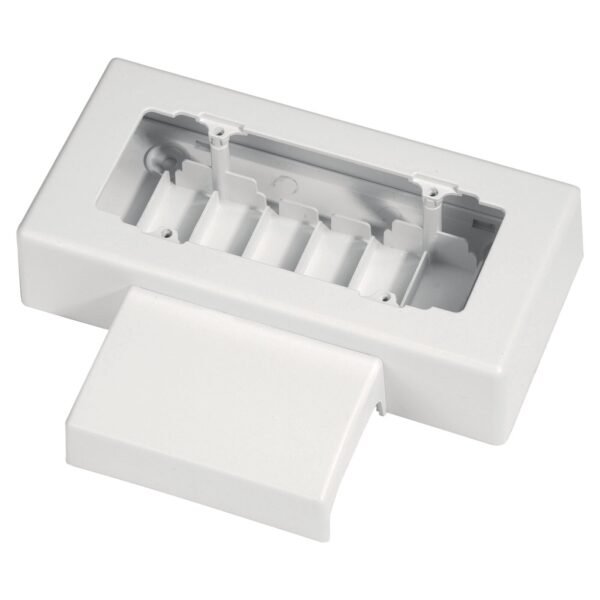

The 6/7-module 100 mm center-to-center appliance box can accommodate up to 7 Italian standard appliances or 3 multi-standard sockets. The large internal volume allows for the installation of any type of appliance. The box is composed of three assembled parts: the lower part, which snaps onto the trunking and the wall with 4 screws, and serves as an insulating base and a grid separating the various circuits. The upper part is specially shaped to accommodate the appliance mounting frames. The trunking cover, in addition to its protective function, gives the whole a harmonious and elegant shape.
Caractéristiques techniques
| Dimensioni | 225 x 185 x 50 mm |
|---|
Marks
Normes
EN 50085-1
EN 50085-2-1
Barcode
8033954876287
Unit
1 NR
0.3125 [kg]
8059307212588
Cardboard
8 NR
0.39×0.295×0.21 [m]
2.5 [kg]
| Materiale | Plastique |
|---|---|
| Colore | Blanc |
| Numero RAL | 9001 |
| Senza alogeni | Oui |
| Decorazione | Sans |
| Grado di protezione (IP) | IP40 |
| Resistenza agli urti | IK08 |
| Altezza canale del battiscopa | 70 mm |
| Profondità del canale battiscopa | 20 mm |
| Numero di unità apparecchi | 6 |
| Attrezzatura | Sans |
| Tipo di montaggio apparecchio per impianti | Standard |
| Direzione di montaggio | Horizontal |
| Trattamento antibatterico | No |
| Temperatura di impiego | -5-60 °C |
