Description

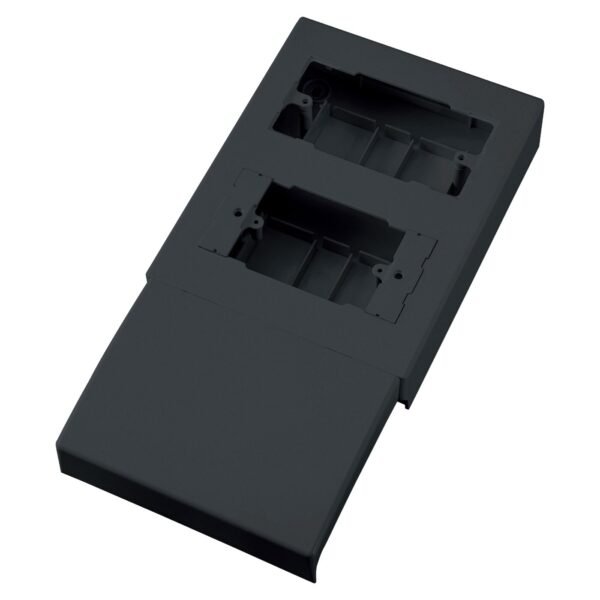

The 4+4 module 108.5 mm center-to-center appliance box can be used to install up to 8 Italian standard appliances or 4 multi-standard sockets. A row, with the supplied accessories, can be reduced to 3 modules. The large internal volume allows for the installation of any appliance. The box is composed of three assembled parts: the lower part, which snaps onto the trunking and the wall with 4 screws, and serves as an insulating base and a grid separating the various circuits. The upper part is appropriately shaped to accommodate the appliance fixing frames. The trunking cover, in addition to its protective function, gives the whole a harmonious and elegant shape.
Caractéristiques techniques
| Dimensioni | 170 x 340 x 50 mm |
|---|
Marks
Normes
EN 50085-1
EN 50085-2-1
Barcode
8032793876823
Unit
1 NR
0.505 [kg]
8059307212830
Cardboard
4 NR
0.39×0.295×0.21 [m]
2.02 [kg]
| Materiale | Plastique |
|---|---|
| Colore | Anthracite |
| Numero RAL | 7021 |
| Senza alogeni | Oui |
| Decorazione | Sans |
| Grado di protezione (IP) | IP40 |
| Resistenza agli urti | IK08 |
| Altezza canale del battiscopa | 130 mm |
| Profondità del canale battiscopa | 28 mm |
| Numero di unità apparecchi | 8 |
| Attrezzatura | Sans |
| Tipo di montaggio apparecchio per impianti | Standard |
| Direzione di montaggio | Horizontal |
| Trattamento antibatterico | No |
| Temperatura di impiego | -5-60 °C |
